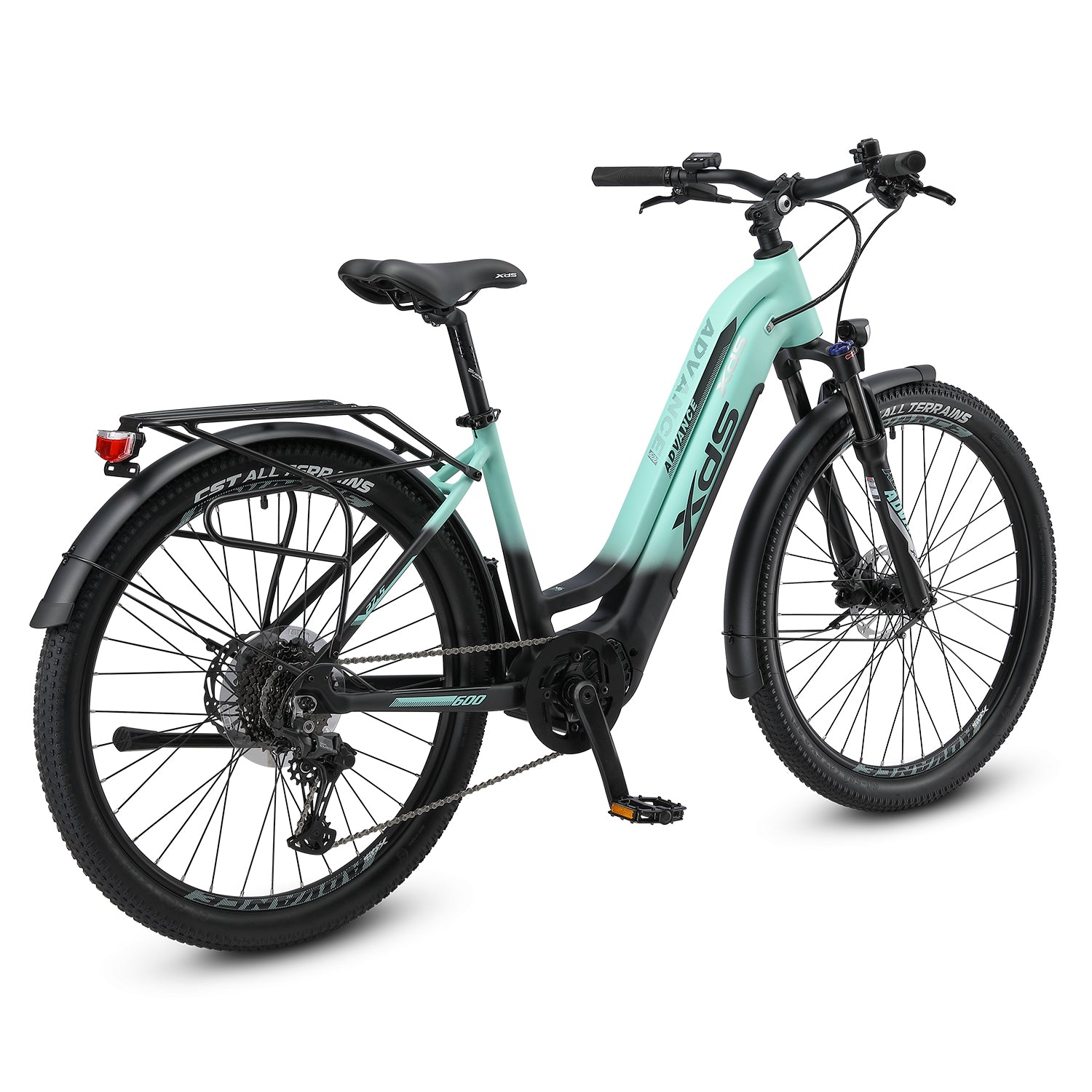

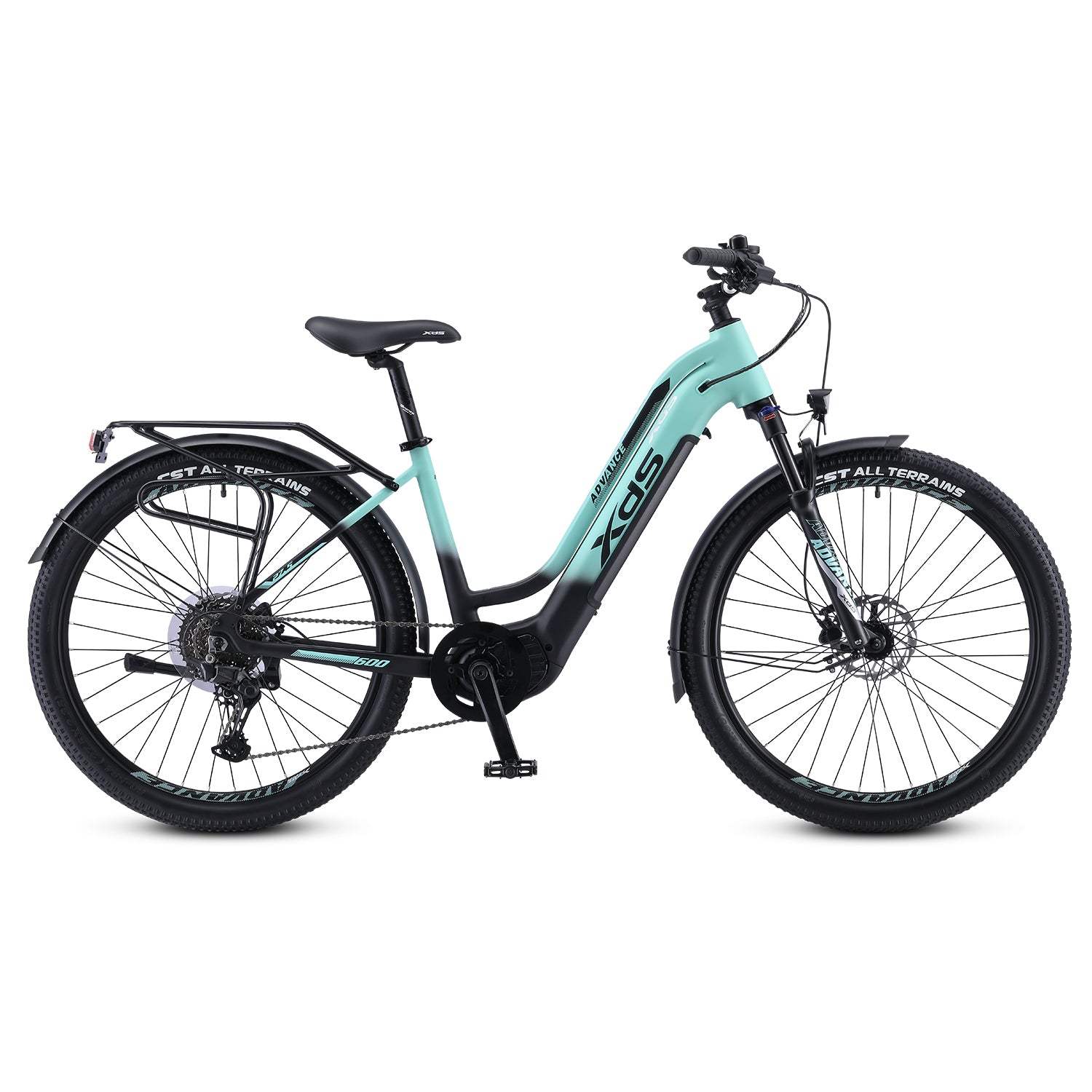

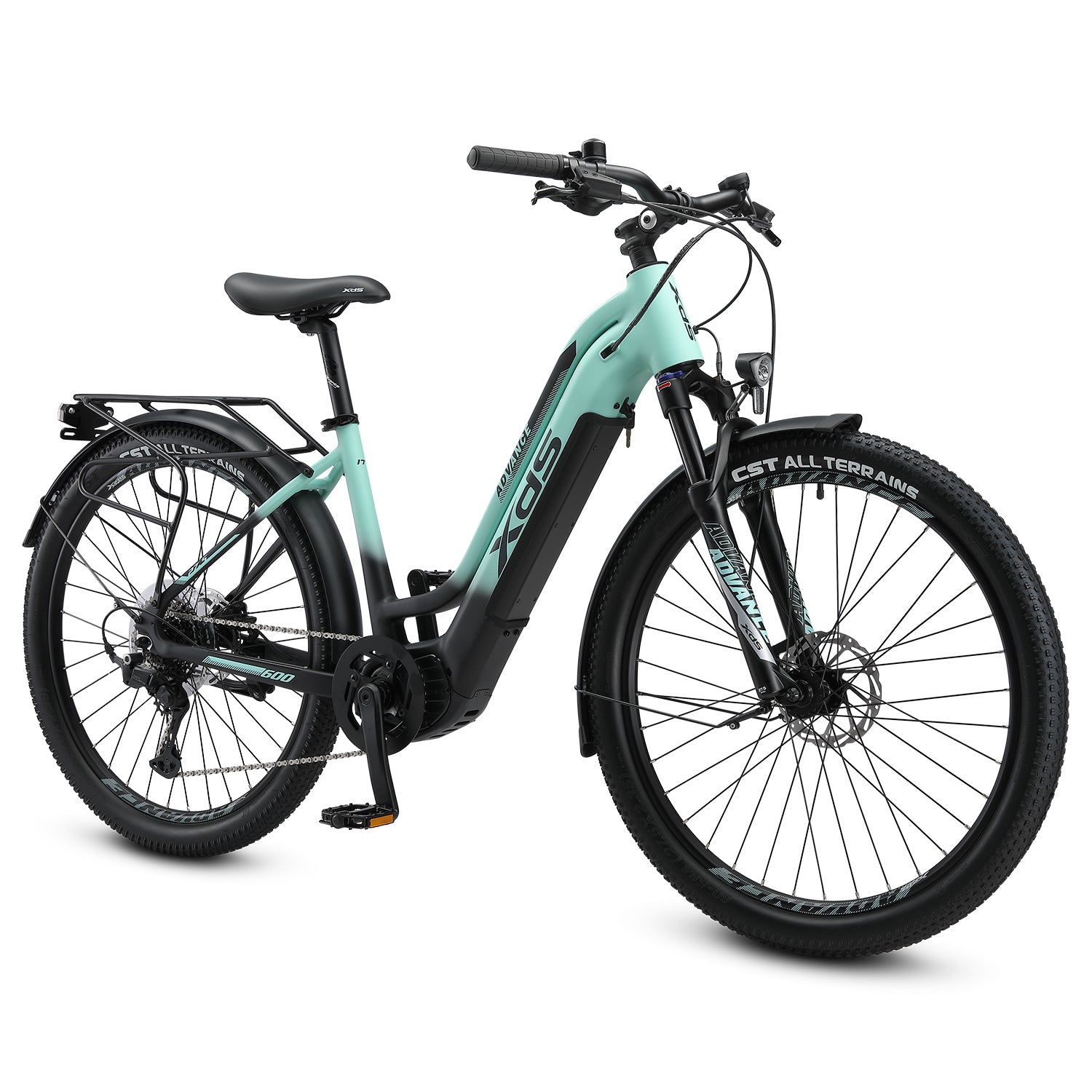

Advance 600 Step Thru - Black / Green

MSRP: $2,999.00
WHOLESALE: $1,880.00
Unit price: per

Select a Sizes:

15 17

Availability: Back Order - ETA 30/08/26

Quantity must be 1 or more

Frame Sizes	15"", 17""
Frame	Alloy 27.5"
Fork	27.5" Travel: 100mm
Handlebar	W：680mm H：35 30° ,φ31.8
Grips	130L
Stem	φ28.6mm H:41mm E:75mm
Seatpost	φ30.9×350mm
Seat Clamp	φ35mm Quick Release
Saddle	Black Saddle
Pedals	9/16""
Right Shifters	Shimano SL-U6000-10R, Cues 10sp Rapidfire Plus
Rear Derailleur	Shimano RD-U6000, Cues, GS 10/11sp, Shadow Plus
Front Brake	hydraulic disc 160mm

Rear Brakes	hydraulic disc 160mm
Freewheel	CASSETTE SPROCKET, CS-LG400-10, CUES D, 11-13-15-17-20-23-26-30-34-39T
Chainwheel & Cranks	40T 170mm
Chain	1/2″×11/128″×120L
Headset	φ28.6×φ56-φ66×φ39.8
Front Hub	13G×36H M9×100×108mm
Rear Hub	13G×36H M10×141 8/9/10-SP QR22 alloy QR, 158mm
Tyre /	27.5" x 2.2
Rim	27.5" 13G×36H
Mudguards	Included
Bell	Included
Rack	27.5" Advance 600 Step Thru-15"" welded rack
Kickstand	L:275mm non adjustable

Electrical Components

Battery	36V12.8AH Panasonic/LG 3200AH cells
Display	XDS 36V
Sensor	Speed sensor
Charger	42V/3A, 220-240V AS standard

Motor	XDS 36V Speed limited 25KM/H
F light	36V
R light	36V
Torque	90nm

Information not yet available, visit Consumer website for more details.
